ULVIPS-PICO640E
Uncooled middle infrared ray camera
Specification
| Sensitivity | 10mV/K |
|---|---|
| NETD | 50mK or less(at movement environment 300K frame rate 30Hz) |
| Frame rate | Maximum 50frames/sec. |
| Area size | 640x480 |
| Pixel pitch | 17um |

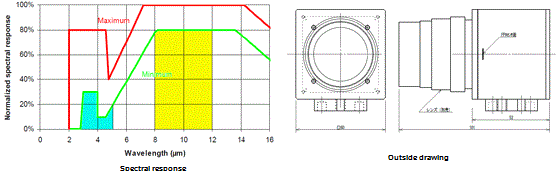

| Spectral response | 3〜16um（worst data） （possible reahuffing by lens exchange in a 3～5um zone and an 8～12um zone） |
| ADC | 14bit |
| Interface |
|
| Control interface |
|
| Power | DC 12V ±1V |
| Operating temperature | ０〜40℃（Thing wihtout the dew condensation.） −25〜60℃ (for option） |
| Preservation temperature | −25〜60℃（Thing without the dew condensation.） |
| Temperature control | The TEC deployment by Peltier cooler (for option) |
| Shutter | non （Shutter-less） |
| Lens mount | It can correspond to various lens makers. |
| Size | W60mm×H60mm×D52mm(for body) |
Example of image output
| Far infrared rays image（8〜12um） | Visible image | Middle infrared rays image（3〜5um） |
|---|---|---|
| PVC sheet | ||
 |
 |
 |
| Incandescent electric lamp | ||
 |
 |
 |
| Outdoor building | ||
 |
 |
 |
