MIR640PL, VGA cooled middle infrared camera Products
MIR640PL
High sensitivity middle area camera equipped with cooled InSb detector.
Clear image of Low NETD is capturable and ideal for long range surveillance at night.
GigE Vision output is added and portability is improved.
Camera appearance with f=35-690mm
Feature
- Area pixel number: 640x512 pixel
- Pixel pitch: 15μm
- Sensitivity wavelength: 1.5~5.4μm
- Maximum frame rate：30fps
Applications
- Night long range surveillance
- Gus detection
- High sensitivity thermal measurement
- Tracking system seeker
Camera specifications
| Item | Specifications |
|---|---|
| Detector | InS Array detector (Quantum type Cold shield：F/4) |
| Area pixel number | 640 x 512 pixel |
| Pixel pitch | 15μm/pixel (Light receiving section: 9.6mm x 7.68mm) |
| Sensitivity wavelength | 1.5 ~ 5.4 μm (Filter is selectable) |
| Frame rate / Digital output | 30fps / 13bit |
| Detector NETD | 20mK less |
| Cooling system | Stirling cooler (K508N MTTF>17,000 hours) (*1) |
| Image output interface | SDI or GigE Vision output (Gigabit Ethernet) |
| Control interface | Serial communications or virtual serial command control via eBUS SDK Pleora |
| Power | DC 12V |
| Operating temperature | -30 ~ +50°C (No due condensation) |
| Storage temperature | -30 ~ +50°C (No due condensation) |
| Lens | Corresponding to various lense |
| External trigger function | Frame synchronizing / Asynchronous trigger photography is available |
| Dimensions | W210mm x H210mm x D436mm (with lens) |
(*1)MTTF is average outage time and an operational life is not guaranteed. We recommend the maintenance for replacing every 2year.
Example
TV station with f=35mm
Zoom with f=690mm same as left

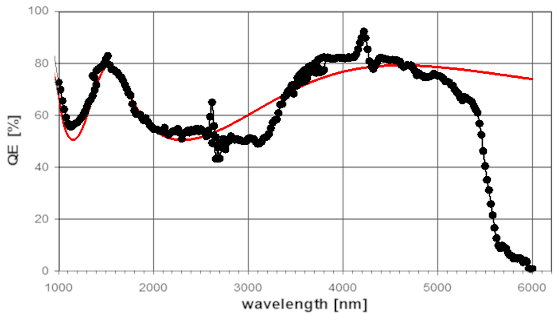

Sensitivity wavelength

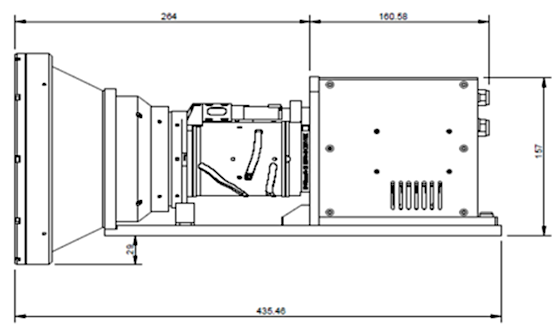

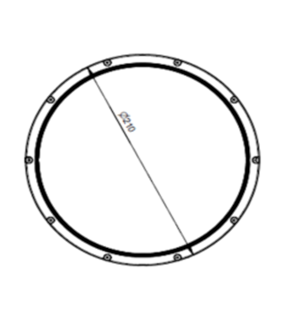

External drawing
