ULVIPS seriesProducts

ULVIPS-03162LiteS

It is useful for a security and an examination in a low-priced model.

  • 外観
  • 外観

Specification

Sensitivity 4mV/K
NETD 120mK or less
Frame rate 50frames/sec.
Area size 384x288
Pixel pitch 25μm
Spectral response 8〜14μm
ADC 12bit
Image power output
interface
  • CameraLink Base Configuration × １
  • USB 2.0　High Speed
  • Composite video signal（NTSC)
Control
interface
  • RS-232C
  • USB 2.0　High Speed
Power DC 12V ±1V
Operating temperature ０〜40℃（Thing wihtout the dew condensation.） −25〜60℃ (for option）
Preservation temperature −25〜60℃（Thing without thw dew condensation.）
Temperature control Heater incorporation
Shutter non （Shutter-less）
Dynamis range
  • Manual：It is possible to cut the number of any bits by offset.
  • Automatic：Auto range
Lens mount Standard：Lens mount from JANOS （It can correspond to various lens makers.）
Size W60mm×H60mm×D52.4mm

Example of image output


Breaker box terminal
Automobile
Telephone pole transformer

Printed circuit board
Air port

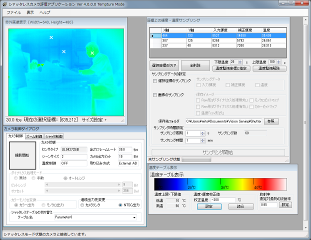

Evaluation application

Shutter-less viewer
  • ・Heat raster display（black and white・para-color）
  • ・Thermometry function
  • ・Image preservation function
  • ・Alarm setting function
  • ・Dynamics range
  • ・It cuts and bring down range
